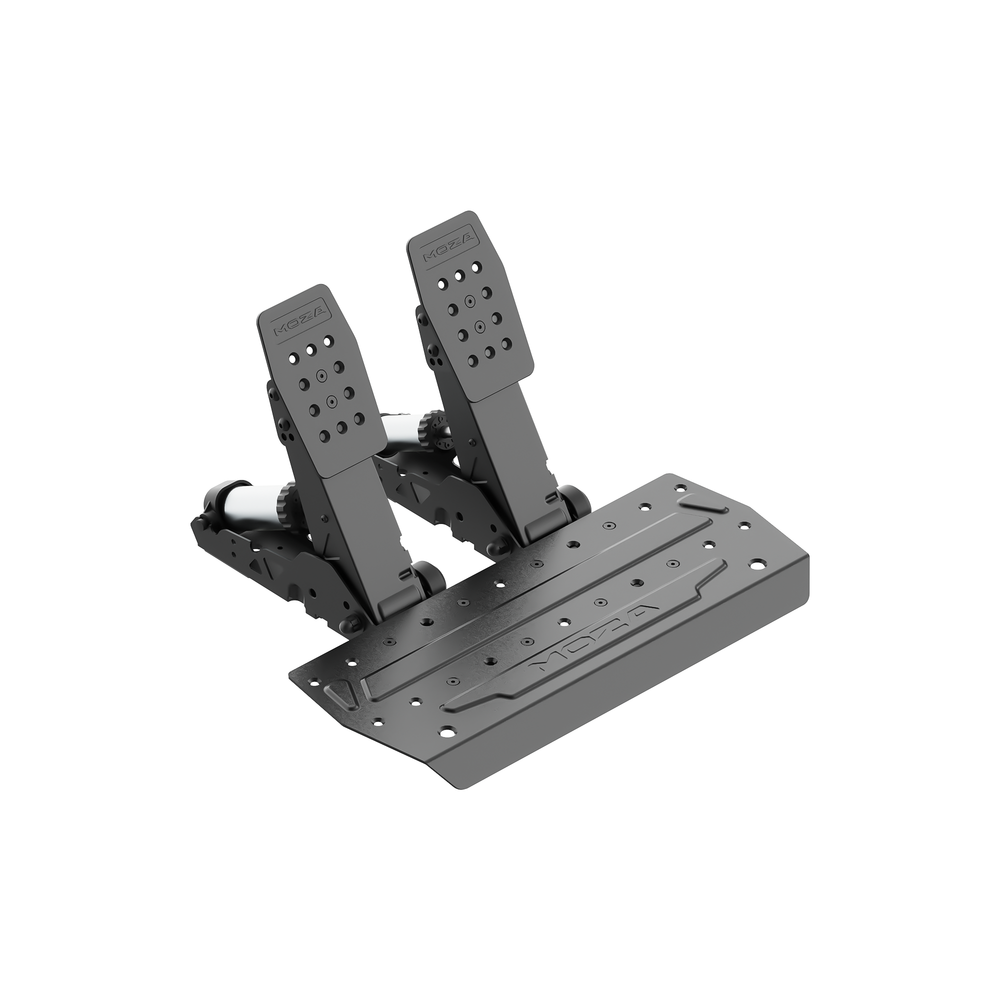

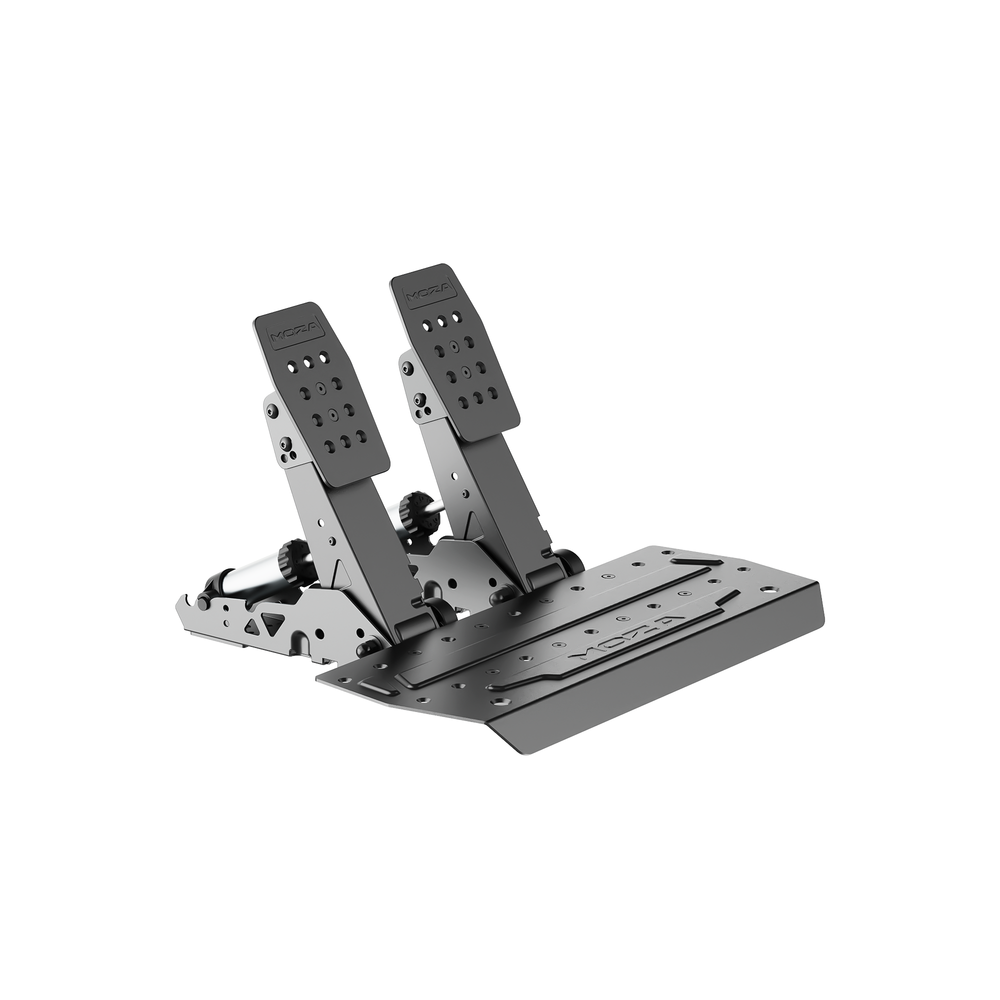

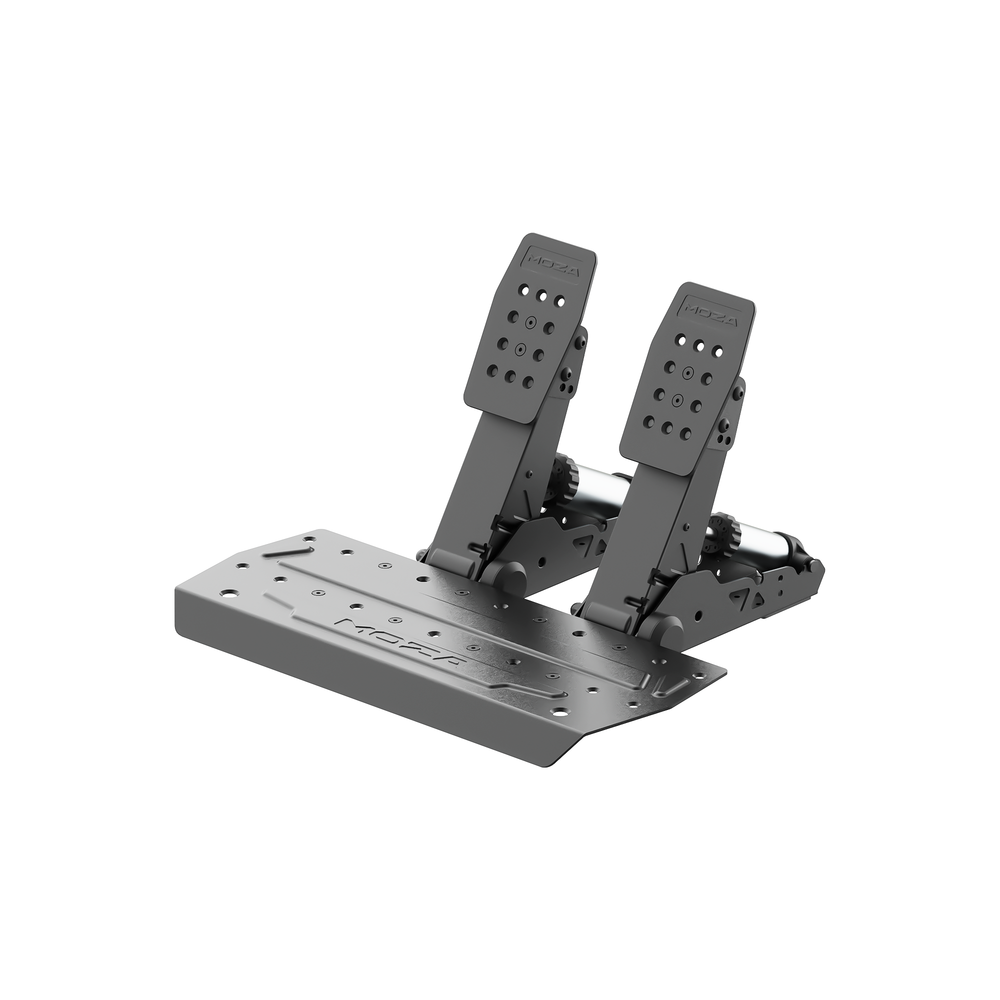

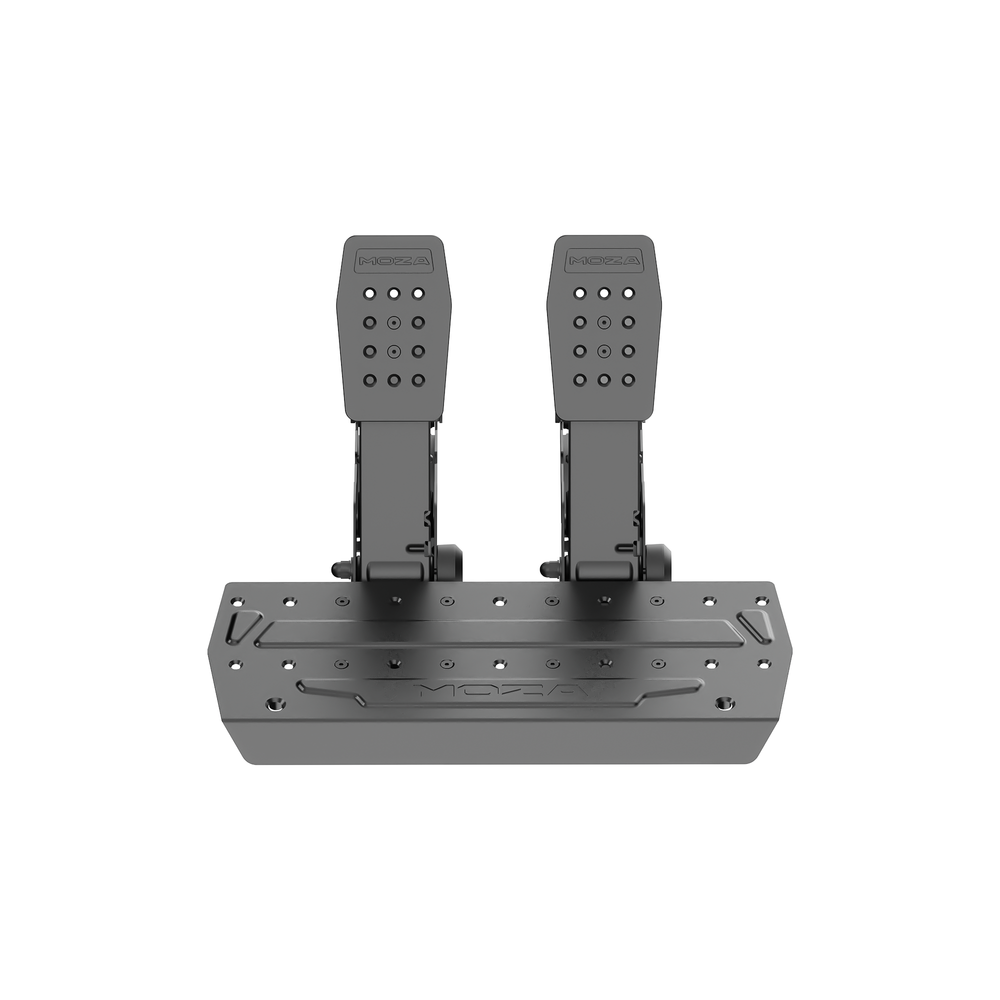

MOZA Racing SRP2 Pedals

MOZA SRP2 Pedals

The MOZA SRP2 Pedals are a compact, high-performance pedal set built for sim racers who want accurate braking, solid construction, and wide adjustability without stepping into a full premium pedal system. Featuring a 100kg load cell, 15-bit angle sensor, and adjustable brake feel, the SRP2 delivers a precise and confidence-inspiring pedal experience for both new and experienced drivers.

Built from high-strength steel with adjustable pedal angle, spacing, and height, the SRP2 pedals are designed to work in a wide range of sim racing setups, from entry-level cockpits to dedicated aluminum profile rigs.

Key Features

• 100kg load cell brake for accurate pressure-based braking
• 15-bit high-precision angle sensor with 32,768 PPR resolution
• Hybrid brake sensing combines load cell and angle sensor data for improved control
• Adjustable brake feel with included elastomer and spring options
• Throttle preload adjustment for personalized pedal resistance
• Adjustable pedal angle with 10° and 25° settings
• Adjustable pedal spacing with 15mm left/right range
• Adjustable pedal height with 36mm range
• MOZA Pit House support for pedal curves, calibration, and real-time output display
• USB connection for direct PC use with MOZA and non-MOZA setups

Load Cell Braking

The SRP2 brake pedal uses a 100kg load cell to measure braking force based on pressure instead of simple pedal travel. This gives you more consistent braking, better muscle memory, and improved control during trail braking, threshold braking, and hard braking zones.

Hybrid Sensor Design

The SRP2 combines a high-resolution 15-bit angle sensor with the 100kg load cell to provide a more controlled and natural brake response. The angle sensor helps manage the initial pedal movement, while the load cell takes over during higher braking force for improved precision and consistency.

Adjustable Brake Feel

The included elastomer and spring setup allows multiple brake feel configurations, giving you control over pedal stiffness and progression. For even more tuning range, the optional MOZA Brake Performance Kit can be used to unlock additional brake feel combinations.

Wide Ergonomic Adjustment

The SRP2 pedals can be adjusted for pedal face angle, spacing, and height, making it easier to dial in a comfortable driving position. Whether mounted to a cockpit, pedal plate, or used with a more compact setup, the SRP2 offers enough flexibility to fit a wide range of drivers and rigs.

Compatibility

• Compatible with PC through direct USB connection
• Works with MOZA wheelbases and non-MOZA sim racing equipment
• Fully configurable through MOZA Pit House software
• Can be mounted to a cockpit, wheel stand, or used on the floor
• Optional clutch pedal available separately
• Optional rear support bracket available separately for added stability

Specifications

What’s Included

• MOZA SRP2 Pedals, throttle and brake
• Toolkit
• Warranty card

Available Add-Ons

• MOZA SRP2 Clutch Pedal
• MOZA SRP2 Rear Support Bracket
• Brake Performance Kit for CRP2 and SRP2
