Moza CS Pro Steering Wheel
Tax excluded. Shipping calculated at checkout
✅ No Tariffs
✅ Ships From California
✅ Only Sales Tax Where Require

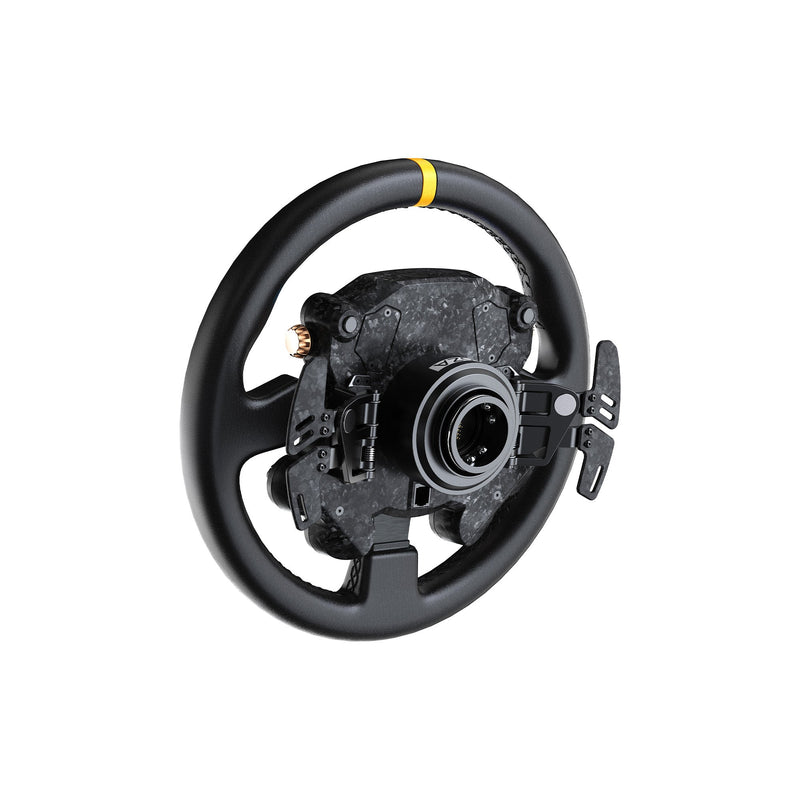

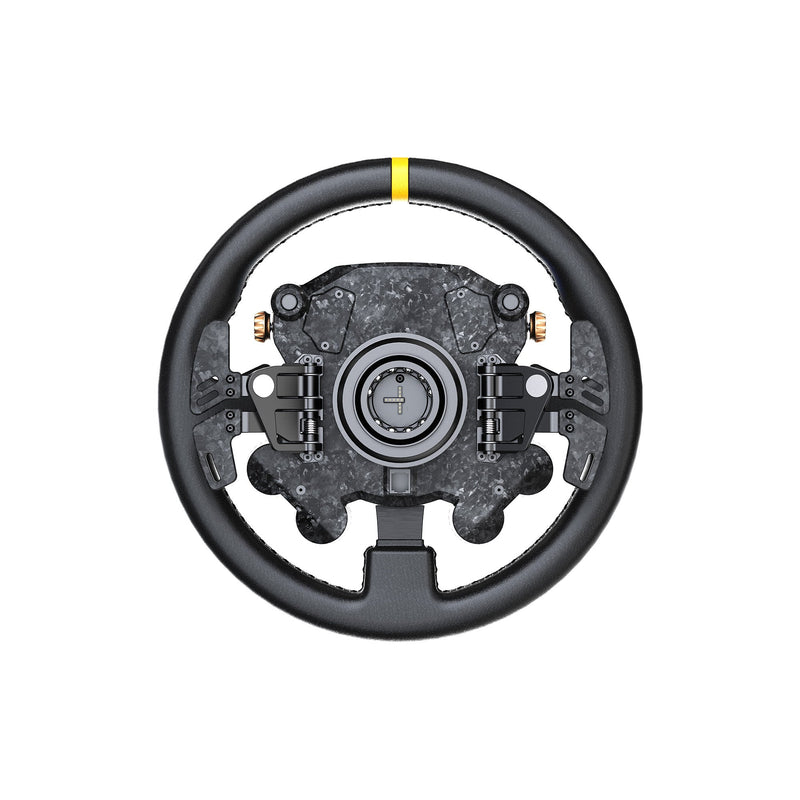

MOZA CS Pro Steering Wheel
325mm Standard Racing Rim. The MOZA CS Pro combines classic GT racing ergonomics with modern sim racing technology, delivering a refined, versatile wheel built for endurance racing, GT competition, and open-wheel adaptability.
Key Highlights
- 325mm standard racing rim with GT-style hub design
- Hand-stitched eco-friendly microfiber leather grip
- 2.99" high-definition display with fully customizable UI
- Carbon fiber–reinforced composite hub construction
- Fully customizable RGB lighting system (16.7M colors)
- Magnetic forged carbon dual-clutch paddles with Hall sensors
- Industry-standard 6×70 bolt pattern for easy rim swaps
- All-aluminum quick release for fast wheel changes
- Third-party wheelbase compatible via MOZA Universal Hub Kit
Bold New Design
The CS Pro features a GT3-style hub paired with an environmentally friendly microfiber leather grip. Seamless stitching at the thumb rest enhances comfort, while the golden ratio layout creates a fuller, well-balanced wheel shape—keeping every control within easy reach.
Customizable UI Display
The integrated 2.99-inch high-definition screen enables extensive dashboard customization through MOZA Pit House. Design your own layouts, import community creations, or share dashboards on the MOZA platform.
- Display Size: 2.99"
- Resolution: 268 × 800
- Refresh Rate: 60Hz
Carbon Fiber Reinforced Construction
The hub is constructed from lightweight carbon fiber–reinforced composite, reducing overall mass to minimize fatigue during long stints while enabling faster, sharper force feedback response.
Easy Swappable Wheel Rim
Featuring an industry-standard 6×70 bolt pattern, the CS Pro button box is compatible with most third-party wheel rims. From GT to drift setups, alternative rims retain full button and display functionality.
Fully Customizable Lighting System
The CS Pro integrates an advanced RGB lighting system for instant visual feedback and motorsport realism:
- 4 × 12-position RGB rotary encoders with 16.7M colors
- 10 RGB rev lights driven by real-time telemetry
- 6 RGB flag lights replicating real-world race signals
10 RGB Rev Lights
Ten fully customizable RGB rev LEDs deliver precise RPM feedback based on telemetry data. Each LED can be individually tuned for color, brightness, and activation timing.
6 RGB Flag Lights
Six RGB flag lights mirror real race conditions, displaying yellow, blue, red, and other signals. Lighting modes can be customized to match specific racing series and regulations.
Magnetic Forged Carbon Paddle Shifters
MOZA’s next-generation paddle module features a forged carbon magnetic structure with Hall sensors for consistent, precise actuation. Dual-clutch paddles support dual-clutch, single-clutch, or programmable input modes.
Optional Upgrade to 6 Paddles
Designed for expandability, the CS Pro supports an optional 6-paddle configuration using pre-installed mounting points and signal connectors. Additional paddles can be mapped to DRS, KERS, or vehicle adjustments for advanced race strategy control.
Extensive Input Control
Every input is fully programmable, offering precision control across all racing disciplines:
- 8 RGB backlit buttons
- 4 × 12-position rotary encoders
- 2 × 7-way funky switches
- 2 thumb wheels
- 2 rear buttons
All-aluminum Quick Release
The aerospace-grade aluminum quick release system is modeled after real race car mechanisms, enabling fast, secure wheel swaps with excellent rigidity.
Third-party Wheelbase Compatibility
Built around an open ecosystem, the CS Pro supports direct PC connection via the MOZA Universal Hub Kit, allowing compatibility with a wide range of third-party wheelbases.
MOZA Pit House Software – Your Racing Command Center
MOZA Pit House enables full control over button mapping, dashboard layouts, and RGB lighting behavior. Fine-tune colors, brightness, and activation logic from an intuitive interface designed for competitive sim racers.
Extreme Durability
All components are rigorously stress-tested for endurance and reliability:
- Buttons rated for 1,000,000+ presses
- Encoders and joysticks rated for 200,000+ rotations
- Paddles tested for 500,000 actuations
Specifications
| Dimensions | 325mm |
| Back Plate Material | Carbon fiber–reinforced composite |
| Front Plate Material | Carbon fiber–reinforced composite |
| Frame Material | Aluminum alloy |
| Grip Material | Eco-friendly microfiber leather |
| Display | 2.99-inch screen |
| UI Interface | Fully customizable |
| Backlit Short-Travel Buttons | 8 |
| RGB Button Colors | 16.7 million |
| Rear Buttons | 2 |
| Rotary Encoders | 4 |
| Thumb Encoders | 2 |
| 7-Way Funky Switches | 2 |
| Flag Lights | 6 side-mounted RGB LEDs |
| Rev Lights | 10 top-mounted RGB LEDs |
| Adjustable Lighting | 16.7M color combinations |
| Shifter Paddles | Magnetic forged carbon with Hall sensors |
| Dual-clutch Paddles | Forged carbon with Hall sensors |
| Fully Adjustable RPM LEDs | Supported (MOZA Pit House) |
| Intelligent Telemetry | Supported |
| Release Method | All-aluminum quick release |
| Communication Method | Wired via conductive slip ring |
| Compatibility | Compatible with all MOZA wheelbases; works with 3rd party wheelbases via MOZA hub kit |
Note: Third-party wheelbase compatibility requires the MOZA Universal Hub Kit.
