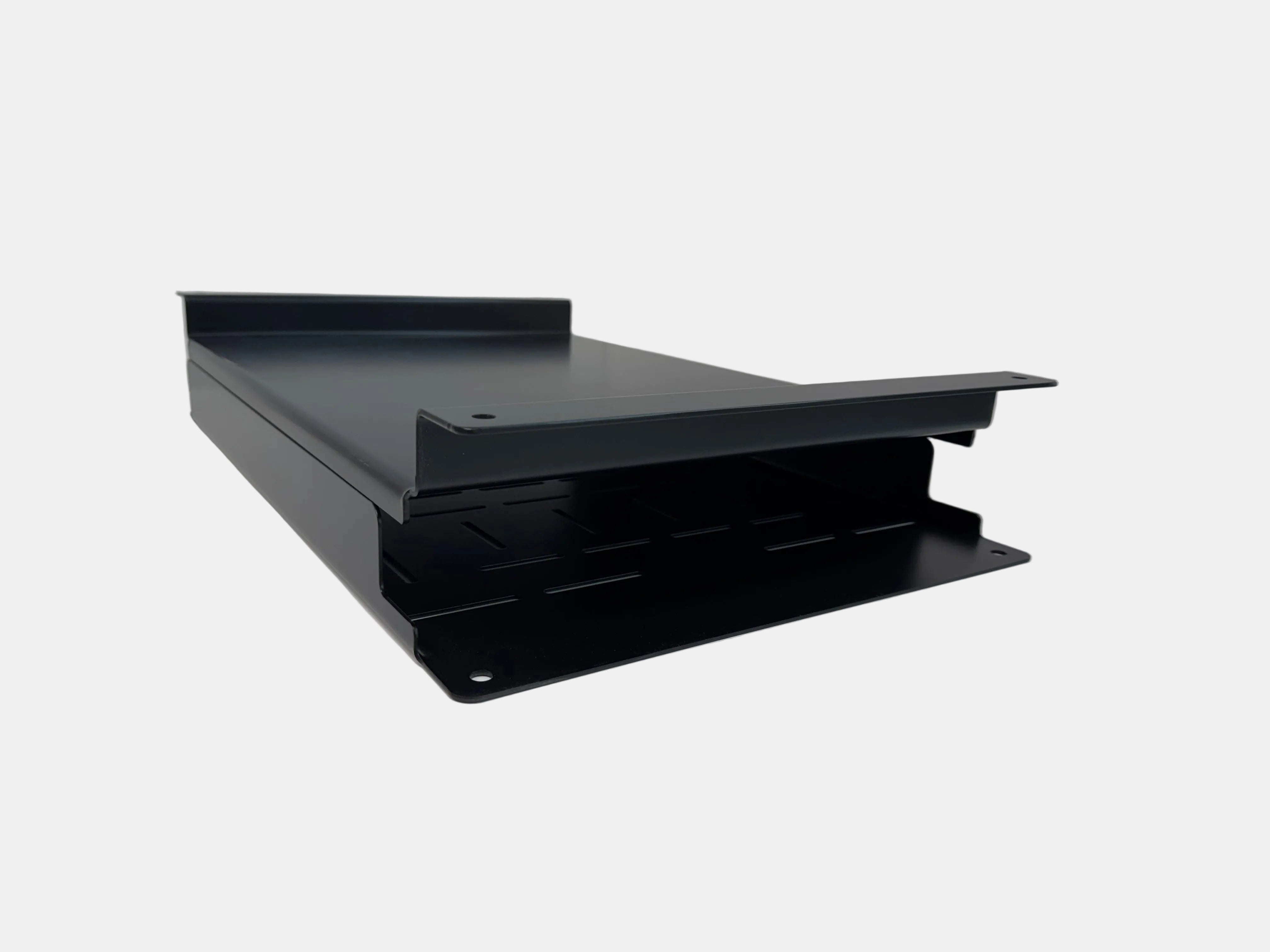

Focus Sim Racing Clean Install Kit

Focus Complete Clean Install Kit

Turn the open underside of your aluminum profile simulator into a clean, organized, purpose-built system with the Focus Complete Clean Install Kit. This kit combines our Dropped Floor Pan, Electronics Management Tray, and Cable Mounting Blocks to manage the driver area, electronics, and wiring as one complete installation.

Instead of mounting power supplies wherever they fit, routing cables across exposed extrusion, and leaving the center of the chassis open, the Clean Install Kit gives each part of the build a dedicated place. The result is a simulator that looks finished from top to bottom while keeping electronics and wiring organized and accessible.

What’s Included

• Dropped Floor Pan – Creates a finished footwell with a 1.25" recessed center section for additional foot and leg clearance
• Electronics Management Tray – Provides a dedicated mounting platform for power supplies, power strips, USB hubs, amplifiers, controllers, and other electronics
• 10 Cable Mounting Blocks – Provide additional attachment points for routing and securing wiring throughout the chassis
• Mounting hardware for installation to compatible aluminum profile chassis

A Complete Under-Rig System

The Clean Install Kit separates the simulator into dedicated areas for the driver, electronics, and wiring.

• The Dropped Floor Pan creates a solid, finished footwell between the seat and pedal area
• The Electronics Management Tray keeps power supplies, hubs, controllers, and other hardware mounted underneath the rig
• The Cable Mounting Blocks give you flexible routing points along the chassis for cleaner cable paths
• Together, the components help keep electronics off the floor and wiring contained within the simulator

Clean, Finished Driver Area

• 1.25" dropped center section provides additional foot and leg clearance
• Creates a defined cockpit-style footwell between the seat and pedals
• Maintains clearance around common seat slider installations
• Prevents feet, cables, tools, and other small items from falling through the open chassis
• Helps conceal electronics and wiring installed beneath the simulator

Dedicated Electronics Management

• Multi-slot mounting pattern supports Velcro straps, zip ties, and direct hardware mounting
• 5mm-wide slots provide flexible mounting positions for compatible hardware
• Ideal for power supplies, power strips, USB hubs, amplifiers, motion electronics, control boxes, and other accessories
• 1.5" side openings provide space for clean cable routing into and out of the tray
• Open-slot construction helps maintain airflow around mounted electronics
• Components remain accessible for maintenance, upgrades, and troubleshooting

Flexible Cable Routing

• Includes 10 Cable Mounting Blocks for additional routing points throughout the chassis
• Helps keep USB, power, audio, haptic, and peripheral wiring routed along intentional paths
• Supports clean cable runs between the cockpit, electronics tray, PC, pedals, wheelbase, and accessories
• Includes both spiked and flat mounting block designs for different mounting locations
• Allows the cable layout to be configured around your specific simulator rather than forcing a fixed routing pattern

Built for Complex Simulators

Modern simulators can quickly accumulate power supplies, USB devices, controllers, amplifiers, haptic hardware, and motion electronics. The Clean Install Kit was designed around the same types of complex systems we build every day.

• Ideal for motion systems, bass shakers, active pedals, multiple USB devices, and high-end turnkey builds
• Provides dedicated space for expanding your electronics configuration over time
• Keeps critical components organized instead of attaching them randomly throughout the chassis
• Makes future service and troubleshooting easier by keeping the installation structured and accessible

Designed & Built In-House

• 2.5mm laser-cut steel Dropped Floor Pan
• 2mm laser-cut steel Electronics Management Tray
• Precision-bent construction for strength and rigidity
• Durable black powder-coated finish
• Designed, manufactured, and finished in-house by Focus Sim Racing in Southern California

Fitment & Compatibility

• Designed for Focus Sim Racing aluminum profile chassis
• Mounts directly to chassis extrusion using M8 hardware and T-nuts
• FSR One Twenty & FSR One Sixty: support the complete Clean Install Kit with both the Dropped Floor Pan and Electronics Management Tray installed together
• FSR 80: supports the Dropped Floor Pan or Electronics Management Tray individually, but does not have sufficient space for the complete two-panel configuration

Compatibility with Other Aluminum Profile Chassis:
The Clean Install Kit may also fit aluminum profile rigs from other manufacturers. Focus Sim Racing chassis use a 580mm-wide lower chassis, placing the Floor Pan and Electronics Tray mounting locations at 540mm apart.

If your chassis has compatible extrusion or mounting locations at 540mm spacing, the individual panels should be able to mount to your rig. To install the complete two-panel Clean Install configuration, your chassis must also provide sufficient length and clearance underneath the seat and cockpit area for both panels.

Because chassis dimensions, crossmember locations, seat mounting layouts, and accessory configurations vary between manufacturers, we recommend measuring your chassis and confirming both 540mm mounting spacing and available installation space before ordering.

Panel Specifications

• Dropped Floor Pan Overall Size: 22.5" x 14 1/8"
• Dropped Floor Pan Center Section: 19.25" x 14 1/8"
• Floor Pan Drop Depth: 1.25"
• Floor Pan Material: 2.5mm steel
• Electronics Management Tray Overall Size: 22.5" x 14 1/8"
• Electronics Tray Slot Width: 5mm
• Electronics Tray Cable Openings: 1.5"
• Electronics Tray Material: 2mm steel
• Bolt Pattern: 21 5/16" x 12 3/4"
• Chassis Mounting Spacing: 540mm
• Finish: Black powder coat

The Focus Complete Clean Install Kit is more than cable management. It gives the driver, electronics, and wiring dedicated spaces within the chassis, turning an open aluminum profile rig into a cleaner, more organized, and more complete simulator.
