Focus Sim Racing Articulating Keyboard Mount
Tax excluded. Shipping calculated at checkout
✅ No Surprise Fees on Most Domestic Orders
✅ Focus Core Products Ship From California
✅ No unnecessary taxes
Focus Sim Racing Articulating Keyboard Mount
Coming Soon

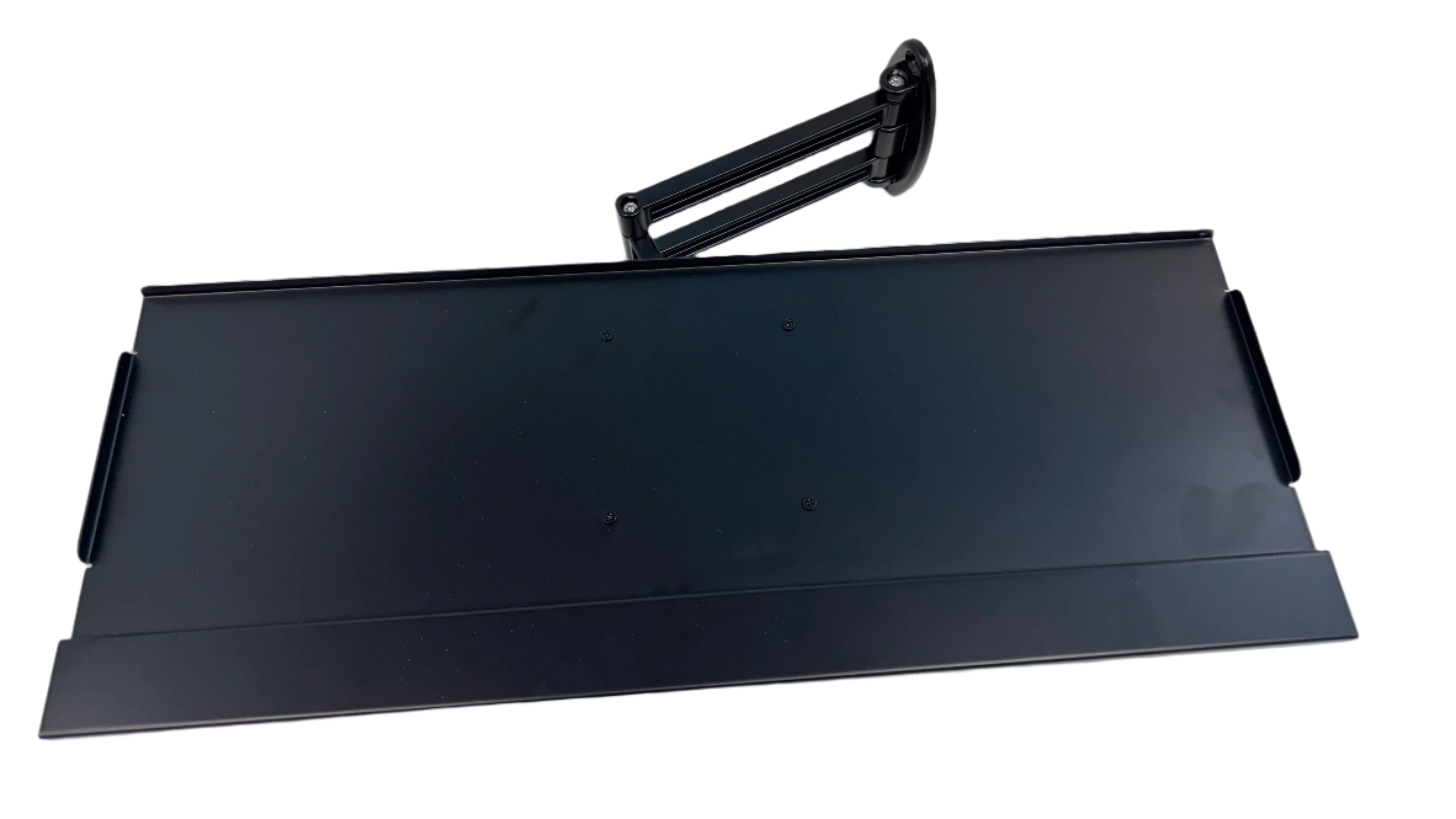

Keep your keyboard within reach without giving up space in your cockpit. The Focus Sim Racing Articulating Keyboard Mount combines a steel tray with a two-pivot aluminum extrusion arm, letting you bring your keyboard into position between sessions and swing it aside when it’s time to drive.
Designed to feel like part of the rig, the mount attaches directly to an existing chassis upright. The clean layout keeps the keyboard mounting hardware behind the usable tray area, with a slight downward tilt and a raised front lip to help keep your keyboard in place.
Built Around Your Cockpit
- Two-pivot arm: Reposition the tray for keyboard access or move it out of the way.
- Direct upright mounting: Attaches to your existing aluminum profile upright without adding another vertical support.
- Left- or right-side installation: Configure the mount to suit your cockpit layout.
- Clear keyboard surface: Button-head mounting bolts sit on a separate rear fixing strip, outside the keyboard area.
- 5° tray tilt: A shallow angle brings the keyboard surface down toward the driver.
- Front retention lip: Helps prevent the keyboard from sliding toward you.
- Rounded outer corners: A finished perimeter suited to a space you reach into regularly.
- Focus detail: A laser-cut FOCUS logo and stripes give the tray a clean, integrated finish.
Steel Tray. Aluminum Profile Support.
The tray is made from 0.100-inch steel and supported by black 40 × 40 mm aluminum extrusion. A satin-black finish, matching hardware, and a capped exposed profile end complete the assembly.
Specifications
| Usable keyboard area | 500 × 200 mm / approximately 19.7 × 7.9 inches |
|---|---|
| Tray material | 2.54 mm / 0.100-inch steel |
| Tray angle | Fixed 5° tilt toward the driver |
| Front retention lip | 15 mm overall height |
| Support profile | 40 × 40 mm aluminum extrusion |
| Arm configuration | Two pivots with a 162 mm short arm and 500 mm tray support |
| Finish | Satin black |
What’s Included
- Steel keyboard tray
- Aluminum extrusion arm and tray support
- Two pivot joint assemblies
- Mounting hardware and exposed-end cap
Fitment: Designed around the FSR chassis. Installation on other aluminum profile rigs depends on upright position, slot compatibility, and available clearance. Check your keyboard dimensions against the usable tray area.
Keyboard and chassis are not included. Product shown in CAD renders. Final production details may change before release.
