Focus Sim Racing Pedal Tray
Tax excluded. Shipping calculated at checkout
✅ No Surprise Fees on Most Domestic Orders
✅ Focus Core Products Ship From California
✅ No unnecessary taxes
FSR Pedal Tray
Put your pedals where they work best for you. The Focus Sim Racing Pedal Tray brings adjustable height, angle, and front-to-back positioning to your pedal setup, with aluminum side plates and extrusion crossmembers that provide a solid mounting platform.
Made to fit a 500 mm rig. The complete assembly includes both side plates, two pedal mounting crossmembers, and the hardware needed to attach the tray to compatible chassis extrusion.
Built Around Your Driving Position
- Adjustable pedal position: Set the tray height, change the pedal angle, and position the assembly along the chassis rails to suit your reach.

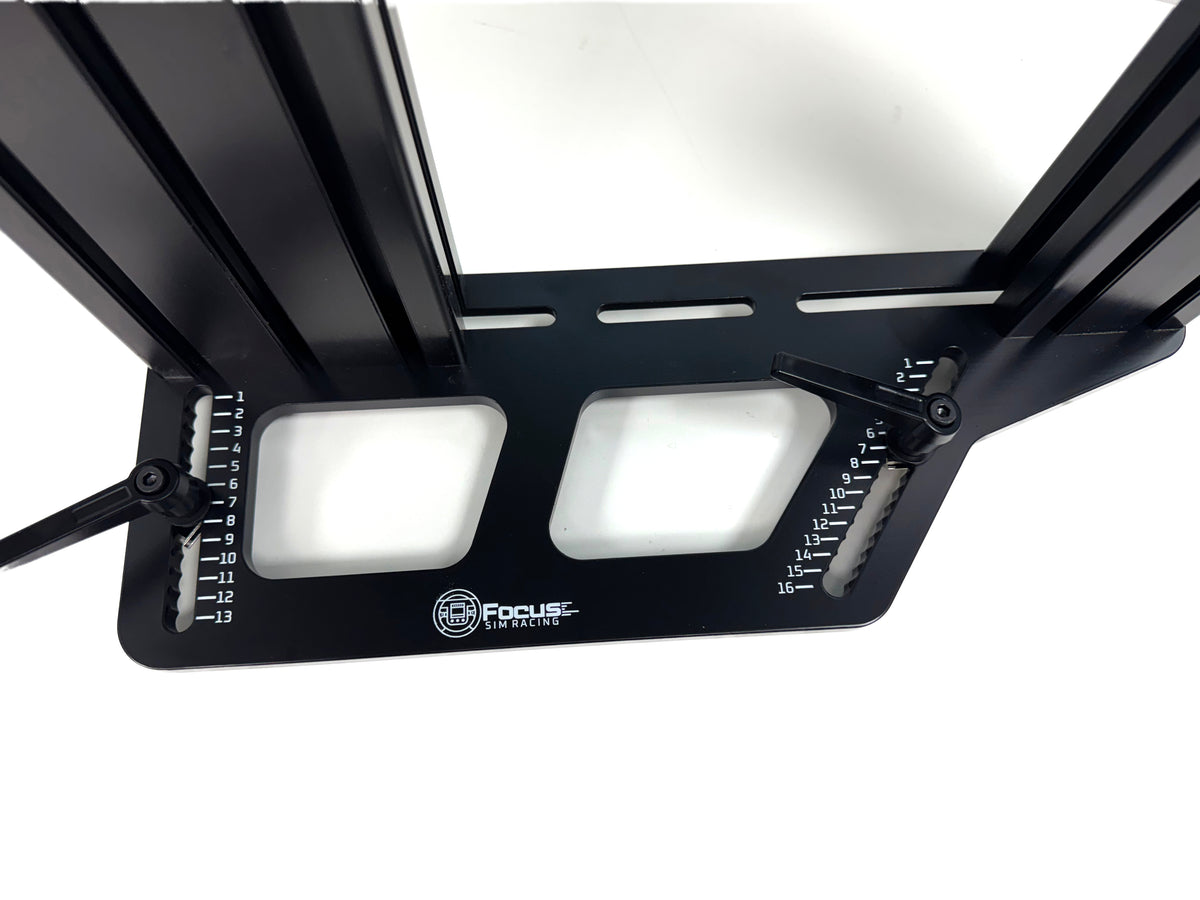

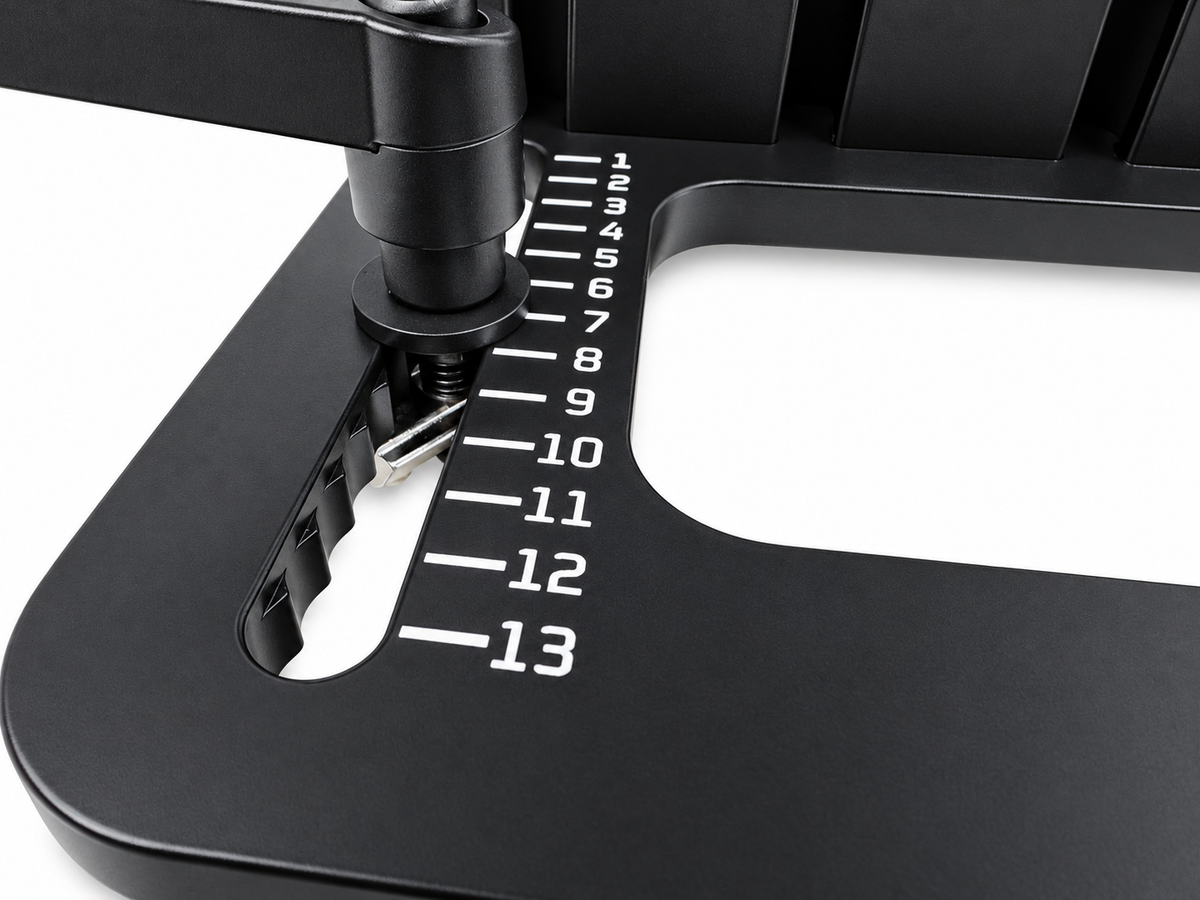

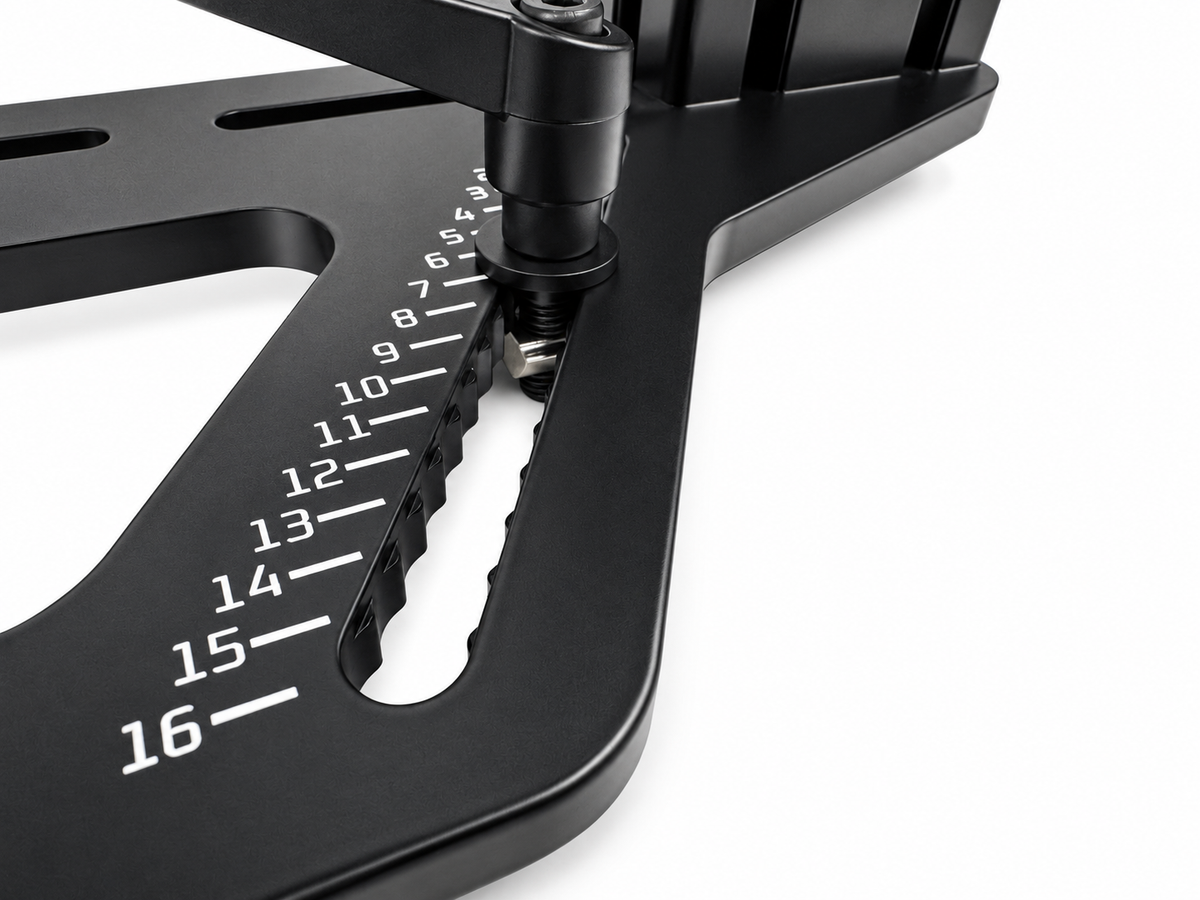

- Indexed side plates: Numbered adjustment markings help you match both sides and return to a previous setting.

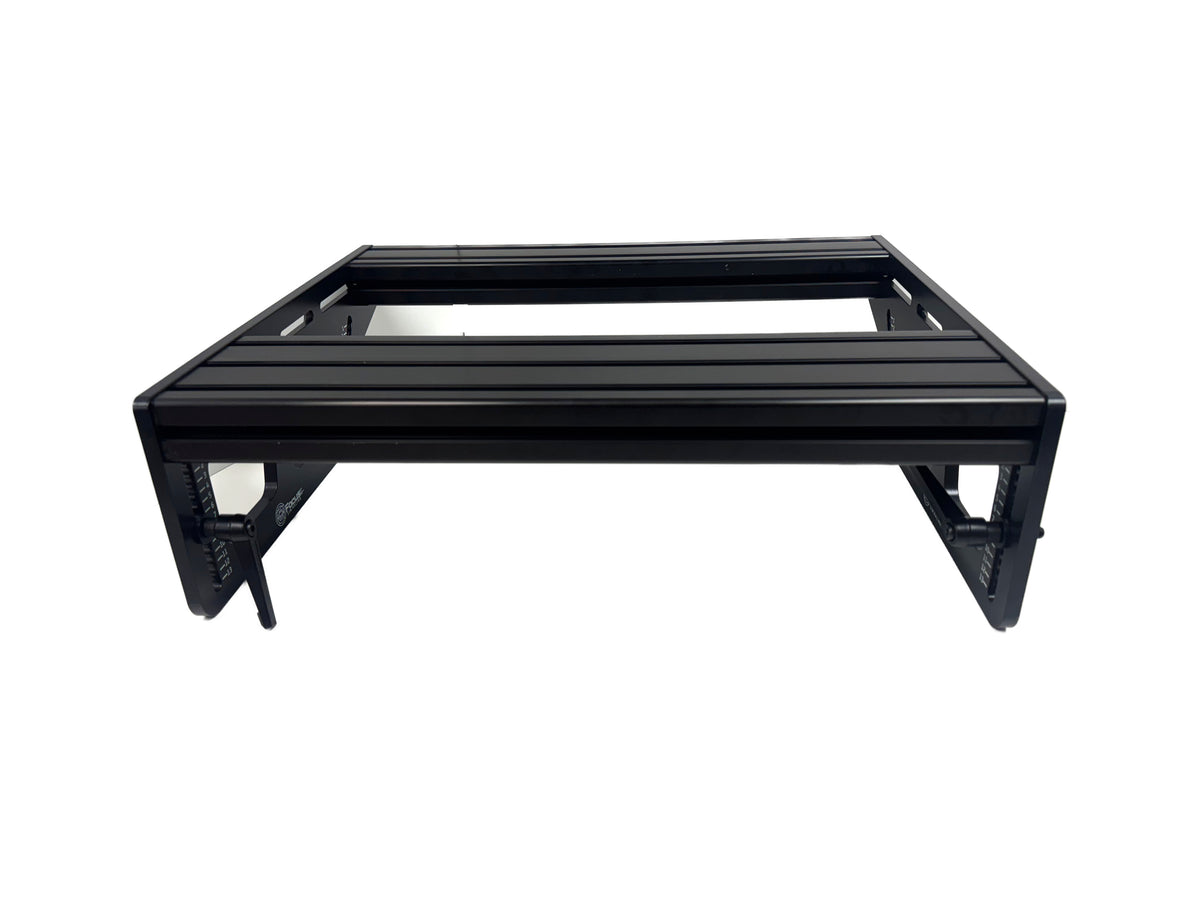

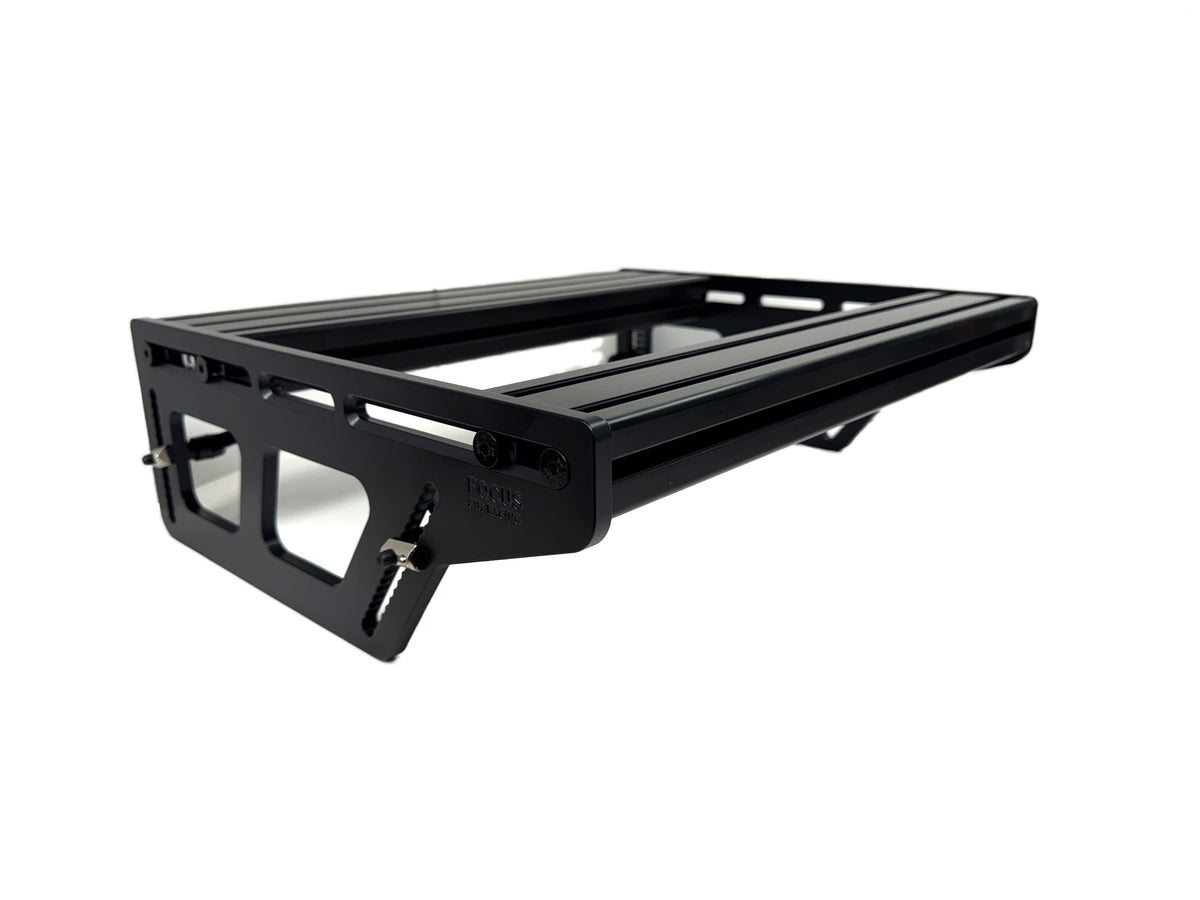

- Aluminum construction: Substantial side plates support two aluminum extrusion crossmembers.
- Slotted pedal mounting: A 40 × 120 mm crossmember and a 40 × 80 mm crossmember provide mounting options for compatible pedals or a separate pedal baseplate.
- Clamping levers: Four M8 levers secure the side plates to the chassis.
- Clean FSR finish: Black components and FOCUS branding match the rest of your cockpit.
Specifications
| Part number | 01-01-PTR-00 |
|---|---|
| Rig fitment | Designed for a 500 mm rig |
| Side plates | 2 × aluminum plates, left and right |
| Overall tray dimensions, including side plates (W × L × H) | 498 × 415 × 152 mm (19.61 × 16.34 × 5.98 inches) |
| Wide crossmember | 40 × 120 mm aluminum extrusion, 478 mm long (1.57 × 4.72 × 18.82 inches) |
| Narrow crossmember | 40 × 80 mm aluminum extrusion, 478 mm long (1.57 × 3.15 × 18.82 inches) |
| Adjustment | Height, pedal angle, and front-to-back chassis position |
| Crossmember fasteners | 8 × M8 × 25 mm countersunk screws |
| Chassis attachment | 4 × M8 clamping levers and 4 × M8 T-nuts |
| Color | Black |
Compatibility & Installation
This tray is made to fit a 500 mm rig. Overall tray width, including the side plates, is 498 mm. The supplied crossmembers are 478 mm long.

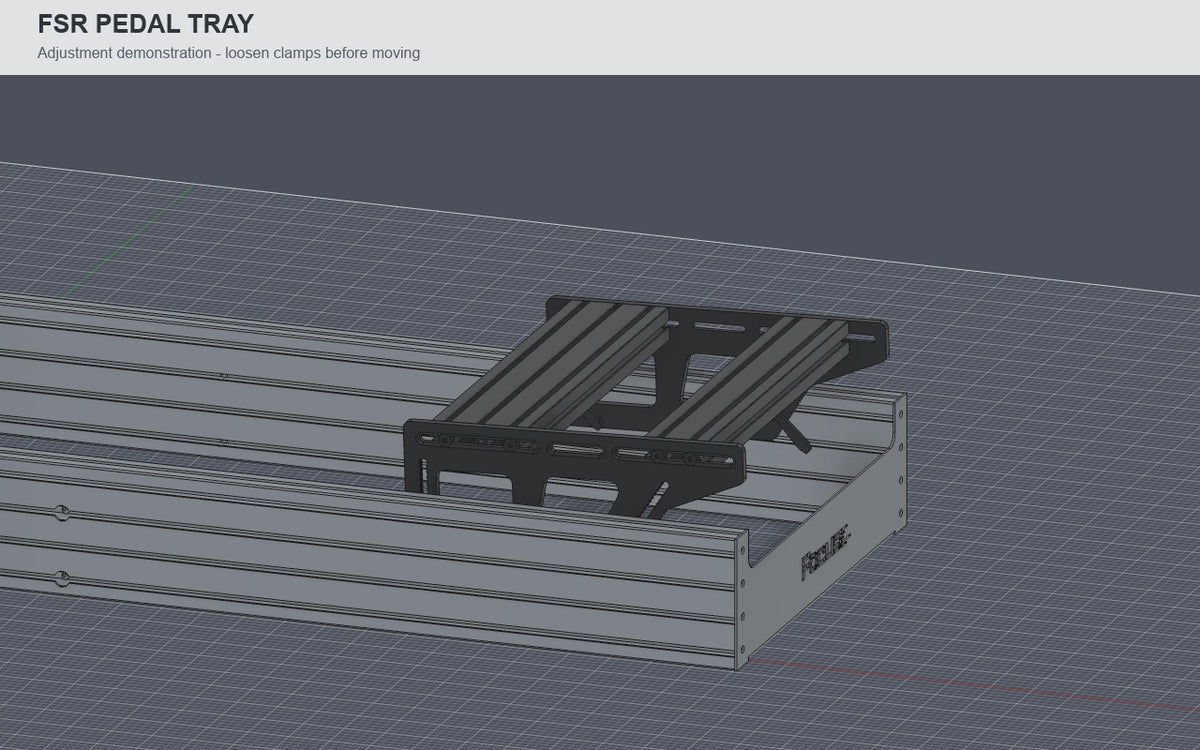

The side plates attach to compatible chassis extrusion using the included M8 clamping levers and T-nuts. Set both sides to matching positions, adjust the tray to your preferred height and angle, and tighten all attachment points before use.
Pedals attach to the crossmember slots using hardware appropriate for your pedal set. Check your pedal mounting pattern and the compatibility of the supplied T-nuts with your chassis extrusion before ordering. Some pedal sets may require a separate baseplate or adapter.
What’s Included
- 1 × left aluminum pedal side plate
- 1 × right aluminum pedal side plate
- 1 × 40 × 120 × 478 mm aluminum extrusion crossmember
- 1 × 40 × 80 × 478 mm aluminum extrusion crossmember
- 8 × M8 × 25 mm countersunk screws
- 4 × M8 clamping levers
- 4 × M8 T-nuts
Pedals, chassis, heel supports, and pedal-specific mounting hardware are not included.
When you buy from Focus Sim Racing, you’re not on your own.
- Expert help choosing the right setup
- Support dialing in your system after delivery
- Real people you can call when you need it
Have questions? Contact us or call (661) 251-8655
Cosmetic Finish Notice: Aluminum extrusion and finished metal components may have minor cosmetic scratches, handling marks, surface variations, or small finish imperfections from manufacturing, machining, coating, packaging, or shipping. These do not affect fit, function, durability, or structural integrity.
