FSR Heel Cups — Set of Two
Give your heels a defined place to rest. The Focus Sim Racing Heel Cups add contoured heel support to your pedal setup, helping keep your feet positioned where you want them during braking and throttle inputs.
Each cup mounts independently, so you can position your left and right foot supports to suit your pedal spacing and driving position. Rounded edges, a sculpted heel pocket, and recessed FOCUS branding bring the same clean design to the pedal area as the rest of your FSR cockpit.
Built Around Your Driving Position

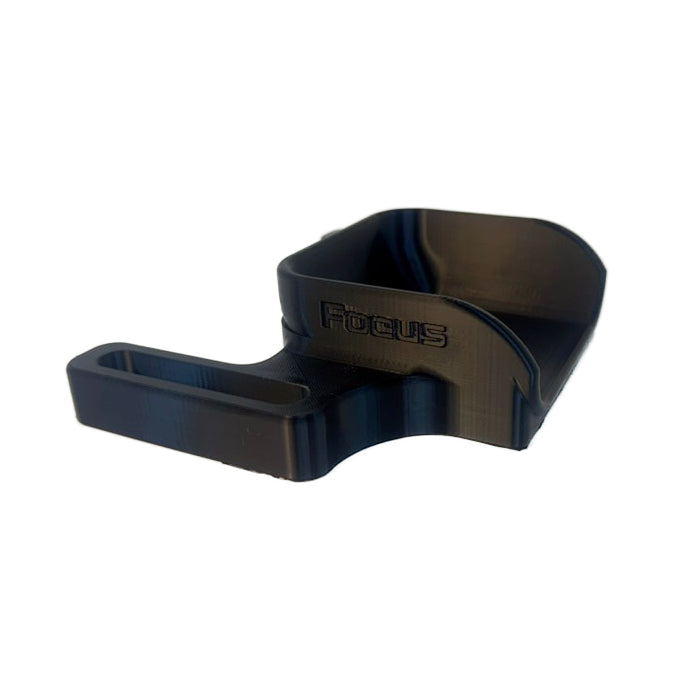

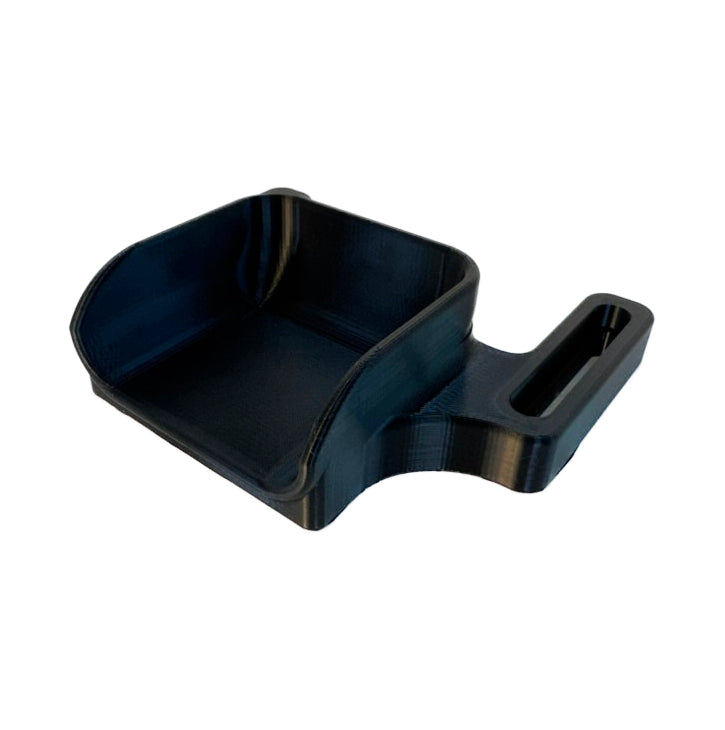

- Contoured heel support: A shaped pocket supports the heel while leaving the front open for foot movement.
- Independent positioning: Set each cup to suit your brake and throttle layout.

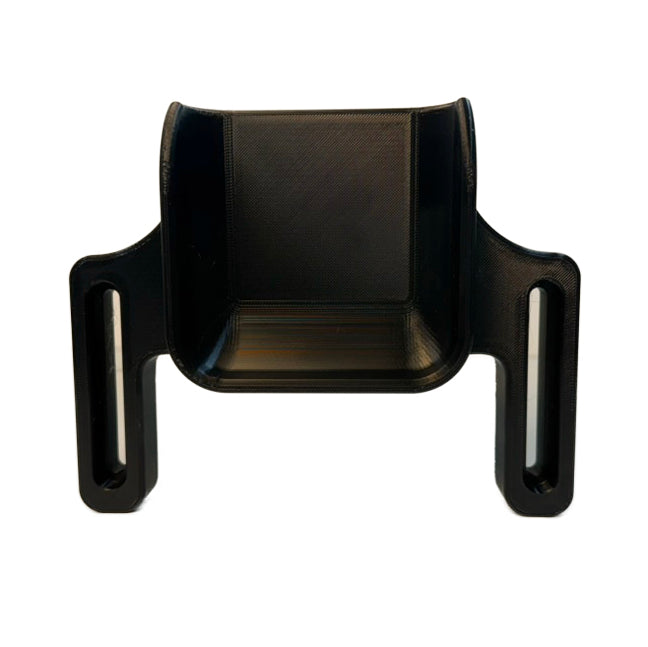

- Slotted mounting rails: Adjust the mounting position before tightening the included hardware.
- Rounded contact edges: Smooth transitions around the heel support and outer perimeter.
- PETG construction: 3D printed in-house with the shape and support built into a single piece.
- Recessed FOCUS branding: An integrated detail on the exterior wall.
- Complete pair: Two heel cups with mounting bolts, washers, and T-nuts included.
Specifications
| Quantity | Set of 2 heel cups |
|---|---|
| Material | 3D-printed PETG |
| Overall dimensions per cup | Approximately 180 × 146 × 45 mm / 7.09 × 5.75 × 1.77 inches |
| Forward opening between mounting rails | Approximately 130 mm / 5.12 inches |
| Mounting slot center spacing | 155 mm / 6.10 inches between rails |
| Mounting hardware per cup | 4 × M6 × 20 mm button-head bolts, 4 × M6 washers, and 4 × M6 T-nuts |
| Branding | Recessed FOCUS wordmark |
Compatibility & Installation

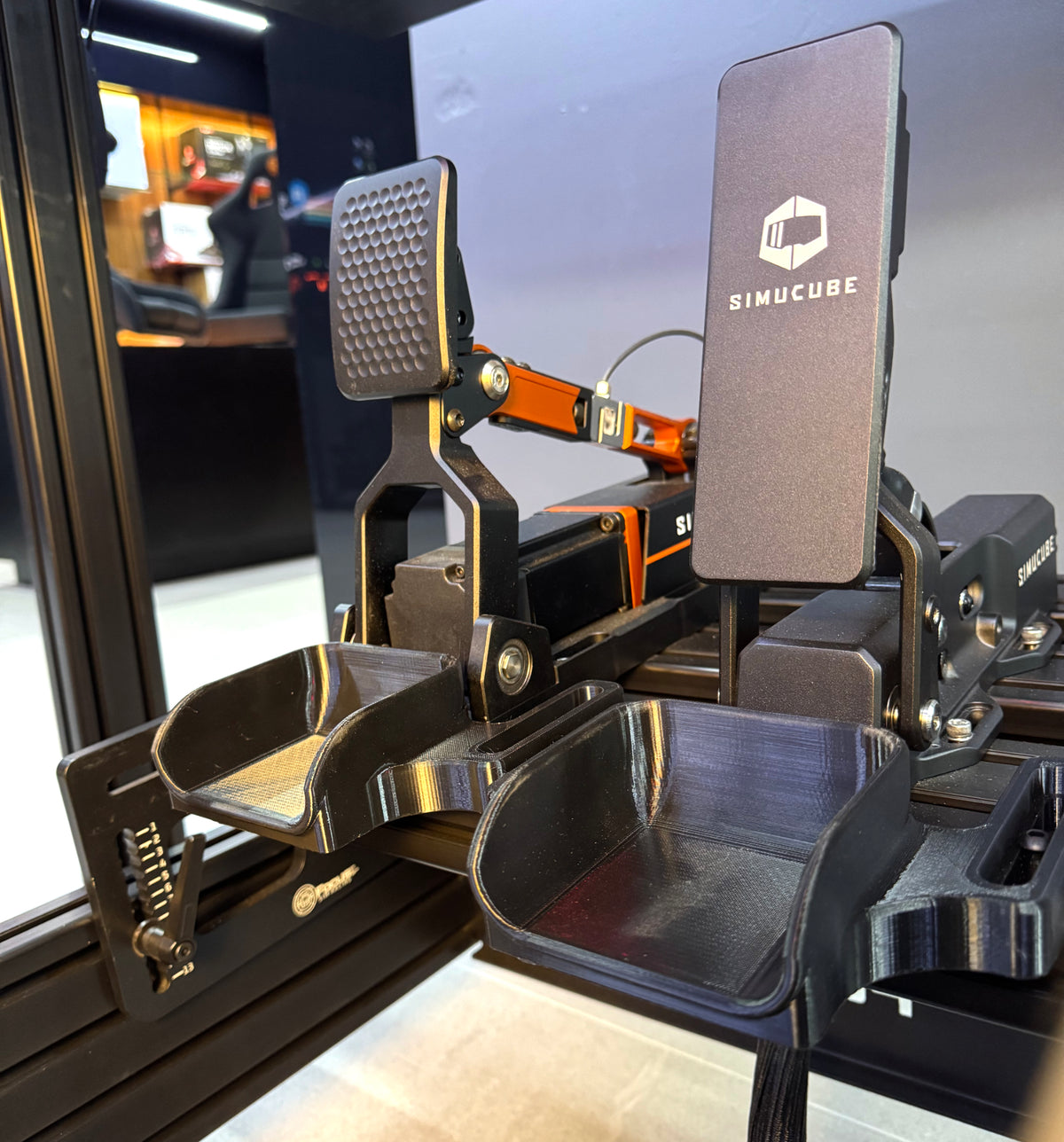

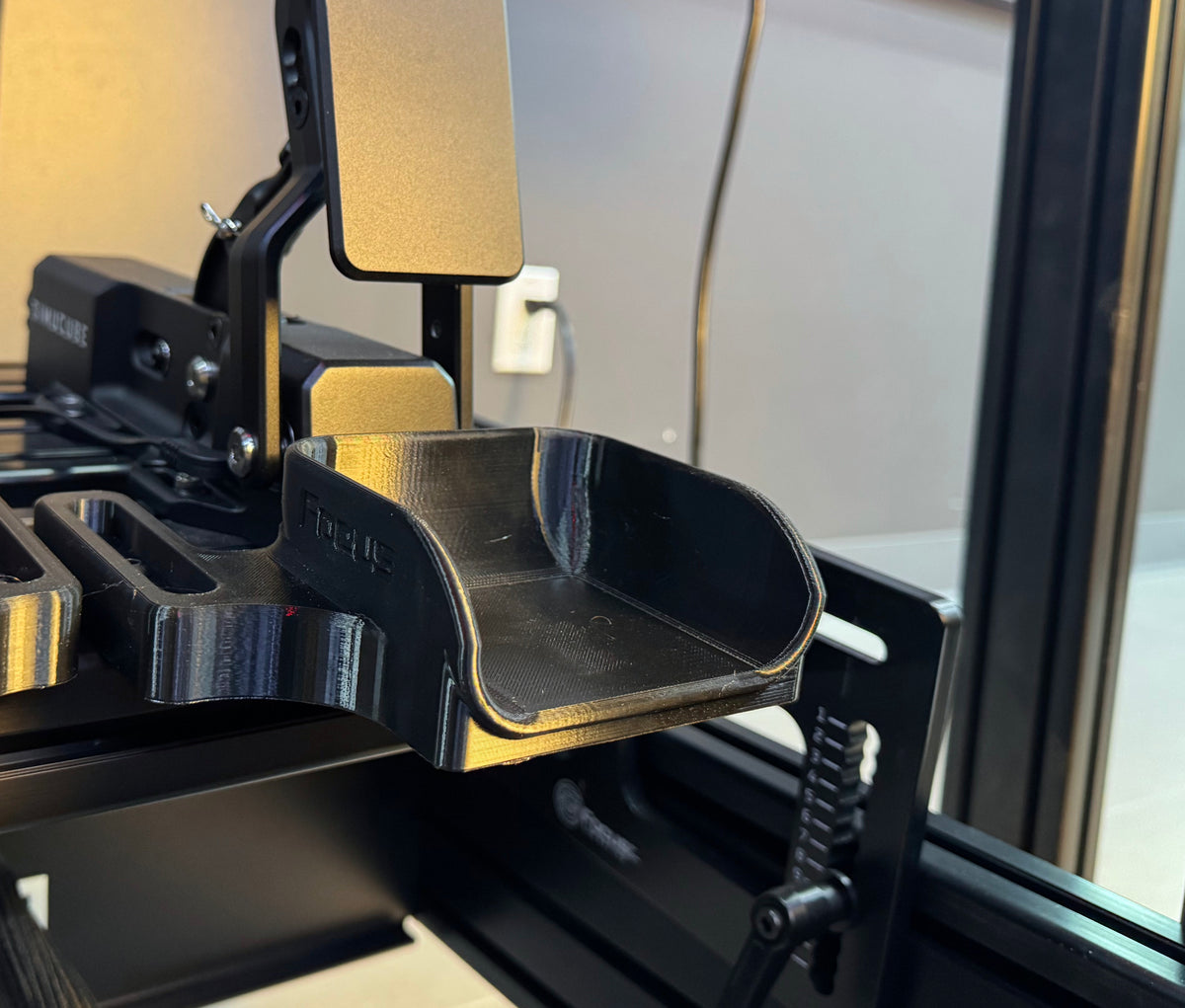

Designed for mounting to compatible aluminum extrusion in the pedal area. Position the cups to suit your pedals, footwear, and seated driving position, then secure each cup using the four supplied bolts, washers, and T-nuts.
Check the 155 mm mounting slot spacing, available clearance, and compatibility of the supplied M6 T-nuts with your extrusion before ordering. Fitment depends on your pedal support layout; M6 thread size alone does not determine extrusion-slot compatibility.
What’s Included
- 2 × FSR Heel Cups
- 8 × M6 × 20 mm button-head bolts
- 8 × M6 washers
- 8 × M6 T-nuts
Sold as a set of two. Each cup includes four bolts, four washers, and four T-nuts.
Pedals, extrusion, and chassis are not included. Visible layer lines and minor surface variations are normal features of the 3D-printing process.
